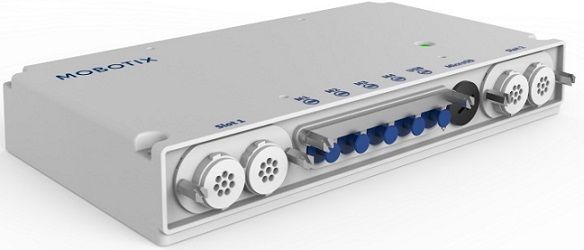

MOBOTIX S74 Body for 4 Sensor- and Functional Modules
Description
S74A IP camera module (body) for connecting up to four additional functional and optical sensor modules (to be ordered individually) degree degree ONVIF-S/T-compliant MOBOTIX.system platform with H.264/H.265 (Triple Streaming), MxPEG+ and M-JPEG degree degree Image sensor options (via sensor module): 4K (8 megapixels), color (day) and/or B/W (night) and/or color (day/night with IR cut).Lens options (via sensor module): horizontal image angle from 95 degree to 15 degree degree degree Max. image size (per image sensor): 4K UHD (3840.2160 pixels), 16:9 degree degree WDR: up to 120 dB.Functional extensions (via optional MOBOTIX modules): MultiSense (PIR, temperature, brightness sensor, Microphone), IR Light (supports 15 degree, 45 degree, 95 degree lenses), USB-C.Operating conditions: IP66/IK10 (housing), -40 to 65 degreeC (-40 to 149 degreeF).Internal DVR:.GB microSD (for MxPEG+ recordings).Max. Power consumption: 25 W, supply via network cable, PoE Class.(IEEE 802.3af/at) degree degreeConnections: 1x RJ45 or 1x LSA board for weatherproof network connection via MOBOTIX patch cable (Ethernet 1000BaseT), 4x MOBOTIX module connection (2x optical/2x functional), USB-C, further connections via interface board.Software interface for MOBOTIX Certified Apps (based on Deep Learning, approx. 20 different 30-day demo versions pre-installed).Housing: Aluminium, PBT-30GF.Color: white degree degreeWarranty:.years (optionally extendable up to.years)
<p><span style="font-size: 18px; color: #000000;"><strong>Mobotix Mx-S74A</strong><br />S74A Solution Platform<br /><img src="https://d347awuzx0kdse.cloudfront.net/vsp/content-image/Mx-S74A.JPG" alt="Mobotix MX-S74A" title="MX-S74A" width="400" caption="false" style="float: right;" /></span></p><p><span style="color: #000000;"><span style="font-size: 18px;">Weatherproof and robust, the latest generation </span><span style="font-size: 18px;">of successful S camera models features increased modularity as well as the latest Mobotix 7 system platform with intelligent Plug-in App concept. The result is a system completly unrivaled in terms of performance, functionality and design.</span></span></p><p><span style="font-size: 18px; color: #000000;">S74A IP camera module (body) for connecting up to four additional functional and optical sensor modules (to be ordered individually).</span></p><p><span style="font-size: 18px; color: #000000;"> </span></p><ul><li><p><span style="font-size: 18px; color: #000000;">ONVIF-S/T-compliant MOBOTIX 7 system platform with H.264/H.265 (Triple Streaming), MxPEG+ and M-JPEG.</span></p></li><li><p><span style="font-size: 18px; color: #000000;">Image sensor options (via sensor module): 4K (8 megapixels), colour (day) and/or B/W (night) and/or color (day/night with IR cut).</span></p></li><li><p><span style="font-size: 18px; color: #000000;">Lens options (via sensor module): horizontal image angle from 95° to 15°</span></p></li><li><p><span style="font-size: 18px; color: #000000;">Max. image size (per image sensor): 4K UHD (3840 x 2160 pixels), 16:9.</span></p></li><li><p><span style="font-size: 18px; color: #000000;">WDR: up to 120 dB.</span></p></li><li><p><span style="font-size: 18px; color: #000000;">Functional extensions (via optional MOBOTIX modules): MultiSense (PIR, temperature, brightness sensor, Microphone), IR Light (supports 15°, 45°, 95° lenses), USB-C.</span></p></li><li><p><span style="font-size: 18px; color: #000000;">Operating conditions: IP66/IK10 (housing), -40 to 65°C.</span></p></li><li><p><span style="font-size: 18px; color: #000000;">Internal DVR: 8 GB microSD (for MxPEG+ recordings).</span></p></li><li><p><span style="font-size: 18px; color: #000000;">Max. Power consumption: 25 W, supply via network cable, PoE Class 4 (IEEE 802.3af/at).</span></p></li><li><p><span style="font-size: 18px; color: #000000;">Connections: 1x RJ45 or 1x LSA board for weatherproof network connection via MOBOTIX patch cable (Ethernet 1000BaseT), 4x MOBOTIX module connection (2x optical/2x functional), USB-C, further connections via interface board.</span></p></li><li><p><span style="font-size: 18px; color: #000000;">Software interface for MOBOTIX Certified Apps (based on Deep Learning, approx. 20 different 30-day demo versions pre-installed).</span></p></li><li><p><span style="font-size: 18px; color: #000000;">Housing: Aluminium, PBT-30GF.</span></p></li><li><p><span style="font-size: 18px; color: #000000;">Colour: white.</span></p></li><li><span style="font-size: 18px;"><span style="color: #000000;">Warranty: 3 years (optionally extendable up to 8 years)</span><br /></span></li></ul>
