MOBOTIX Extension Module For All Indoor Cameras x26A/x26B
Description

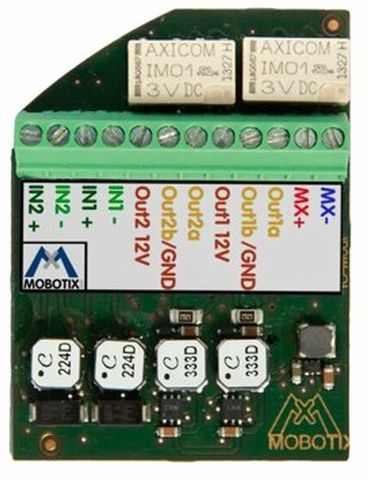

Expansion module for Indoor Cameras c26A/B, i26A/B, p26A/B and v26A/B (installed on the back).Not suitable for x25 indoor cameras.For connecting external sensors (e.g., door and window contacts) and switches of external devices (e.g., relays with lamps and motors).Two inputs (galvanically separated): 0 degreeV to 48 degreeV degreeAC/DC.Two outputs: 2x floating (load per contact max. 30 degreeW or 1 degreeA or 48 degreeV AC/DC) or 2x 12 degreeV degreeDC (max. 50 degreemA per output).2x MxBus terminal connector (MxBus will be supported only by the x26B Indoor Cameras).Ambient temperature: 0 degreeC to 40 degreeC (32 degreeF to 104 degreeF).Power consumption: 1 degreeW
