MOBOTIX M16B Thermographic Camera 50 mK, T237 (17 degree)
Description

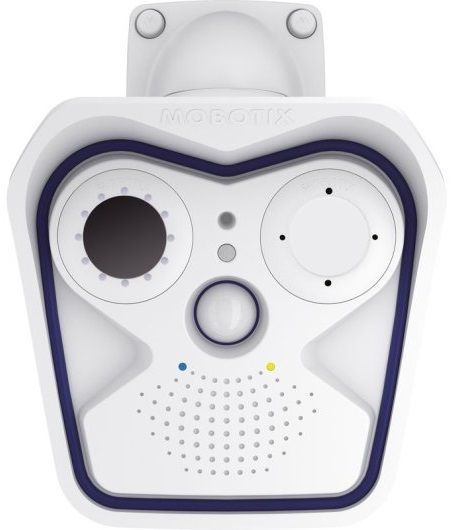

IP thermographic camera with T237 thermal lens, horizontal/vertical image angle 17 degree/13 degree, optional connection of an additional optical 6MP sensor module (to be ordered individually).ONVIF-compliant Mx6 system platform (2nd generation) with H.264, MxPEG+ and M-JPEG.Highly sensitive thermal image sensor: NETD typ. 50 mK, <79 mK, IR range 7.5 to 13.5 micrometer, uncooled micro bolometer, up to.frames per second.Image size (thermal): 336.252 pixels (can be scaled up).IP66/IK07, -40 to 60 degreeC (-40 to 140 degreeF).Internal DVR:.GB MicroSD.System components: speaker and microphone (inside housing), PIR sensor, temperature sensor, MxActivitySensor, shock detector.VarioFlex wall mount (can be used with additional ceiling mount MX-DH-M24-SecureFlex and pole mount MX-MH-SecureFlex-ESWS), ethernet patch cable 0.5 m/1.65 ft.Interfaces: Ethernet 10/100 (RJ45), MxBus, USB; IO and RS232 via additional MX Interface Box.Incl..Blind Module (MX-SM-Blind-PW)
