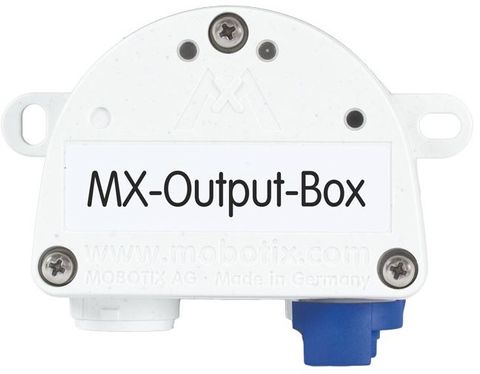

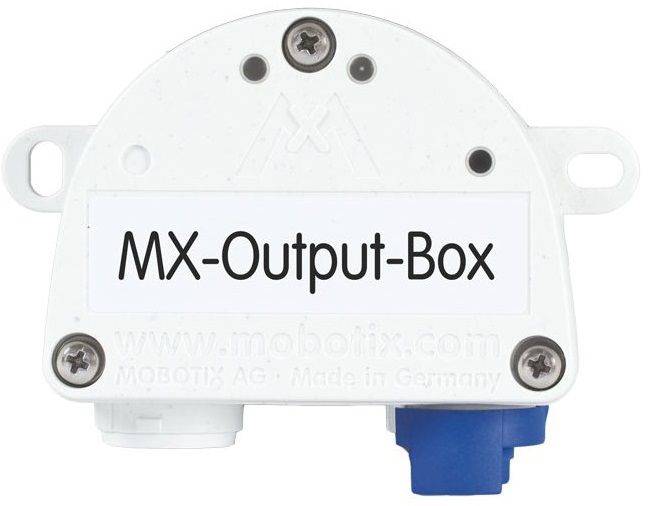

MOBOTIX MX-Output-Box
Description
Weatherproof connection of external devices and power relays.Connection to the camera via MxBus.Six self-powered outputs (12 V, each 10 mA).Two isolated outputs (can be switched to degreeself-powered degree using.jumper: 12 V, max. 50 mA).Protection class IP66/IK07, -30 to 60 degreeC.-22 to 140 degreeF.Box can be mounted safely out of reach in the wall mounts of M1x, M2x, D1x, D2x
