HIKVISION INTERCOM, GEN 2, NAMETAG MODULE, 6 BUTTON (KD-KK)
Description

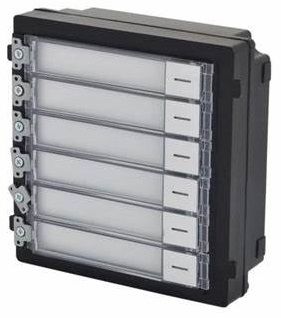

Hikvisiom KD8 Series Pro Modular Door Station
Features
*Modular Door Station Nametag Unit, Needs Mounting Bracket
*6 Call Buttons, Including 4 Button Covers, IP65
*Dial The Resident At One-Touch
*Backlight Compensation
*Easy And Extend
*Communication Protocol - Tcp/Ip, Rtsp
*Wired Network -10/100 Mbps Self-Adaptive Ethernet
*Buttons -6
*Installation -Flush Mounting, Surface Mounting
*Protective Level -IP65, Ik07
*Power Supply Method -12 Vdc (Powered For Other Module)
*Working Temperature-40 C To 55 C(-40 F To 131 F)
*Working Humidity -10% To 95%
*Dimensions -98.5 Mm 100 Mm 34.2 Mm
*Power Supply -12 Vdc (Powered For Other Module)
*Power Consumption - 2 W
*Model -IDS-KD-Kk/S
Features
*Modular Door Station Nametag Unit, Needs Mounting Bracket
*6 Call Buttons, Including 4 Button Covers, IP65
*Dial The Resident At One-Touch
*Backlight Compensation
*Easy And Extend
*Communication Protocol - Tcp/Ip, Rtsp
*Wired Network -10/100 Mbps Self-Adaptive Ethernet
*Buttons -6
*Installation -Flush Mounting, Surface Mounting
*Protective Level -IP65, Ik07
*Power Supply Method -12 Vdc (Powered For Other Module)
*Working Temperature-40 C To 55 C(-40 F To 131 F)
*Working Humidity -10% To 95%
*Dimensions -98.5 Mm 100 Mm 34.2 Mm
*Power Supply -12 Vdc (Powered For Other Module)
*Power Consumption - 2 W
*Model -IDS-KD-Kk/S
<h2 class="prod_name"><span class="prod_name-content" style="font-size: 16px;">KD8 Series Pro Modular Door Station</span></h2><ul class="product_description_item-list"><li class=" product_description_item"><span style="font-size: 16px;">Modular door station Nametag unit, needs mouting bracket</span></li><li class=" product_description_item"><span style="font-size: 16px;">6 call buttons, including 4 button covers, IP65</span></li><li class=" product_description_item"><span style="font-size: 16px;">Dial the resident at one-touch</span></li><li class=" product_description_item"><span style="font-size: 16px;">Backlight compensation</span></li><li class=" product_description_item"><span style="font-size: 16px;">Easy and extend</span></li><li class=" product_description_item"><span style="font-size: 16px;">Model - DS-KD-KK/S</span></li></ul><p><span style="font-size: 16px;"><strong>Specifications<br /></strong></span><strong><span class="tech-specs-items-description__title--heading">Network Parameters</span></strong></p><ul class="tech-specs-items-description" data-target="Network parameters"><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Communication Protocol<br /></span>- TCP/IP, RTSP</li><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Wired Network - </span><span class="tech-specs-items-description__title-details">10/100 Mbps self-adaptive Ethernet</span></li></ul><p><strong><span class="tech-specs-items-description__title--heading">General</span></strong></p><ul class="tech-specs-items-description" data-target="General"><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Button - </span><span class="tech-specs-items-description__title-details">6</span></li><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Installation - </span><span class="tech-specs-items-description__title-details">Flush mounting, surface mounting</span></li><li class="tech-specs-items-description-list">529 g (with packaging)</li><li class="tech-specs-items-description-list">265 g (without packaging)</li><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Protective Level - </span><span class="tech-specs-items-description__title-details">IP65, IK07</span></li><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Power Supply Method - </span><span class="tech-specs-items-description__title-details">12 VDC (powered for other module)</span></li><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Working Temperature </span>-40° C to +55° C(-40° F to 131° F) </li><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Working Humidity - </span>10% to 95% </li><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Dimensions - </span><span class="tech-specs-items-description__title-details">98.5 mm × 100 mm × 34.2 mm (3.87" × 3.95" × 1.33")</span></li><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Power Supply - </span><span class="tech-specs-items-description__title-details">12 VDC (powered for other module)</span></li><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Application Environment - </span><span class="tech-specs-items-description__title-details">Outdoor</span></li><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Power Consumption - </span><span class="tech-specs-items-description__title-details">≤ 2 W</span></li></ul>
