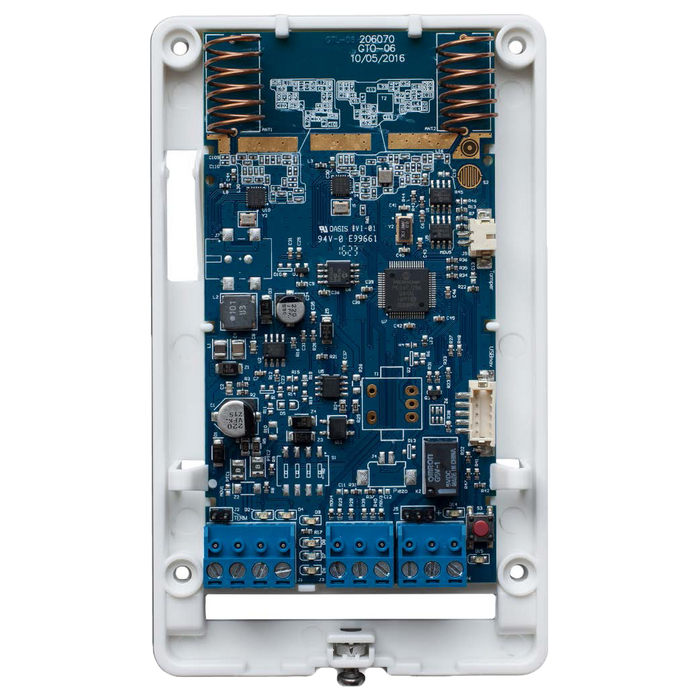

AXON 32 zones 433 MHz wireless receiver DGP (ATS1236)

Stock Code:
AXON-ATS1236
Login For Price

Description

The ATS1236 Wireless Receiver expands AXON series panels with wireless capabilities, supporting up to 32 wireless zones and 16 keyfobs. It is compatible with legacy 433 MHz 63-bit transmitters and the new LoNa 433 MHz encrypted transmitters, ensuring secure, interference-free communication.

Additionally, the ATS1236 includes two wired zone inputs and one programmable SPDT Form C relay output, providing flexible integration options for security installations.

Key Features:
Adds 32 wireless zones to AXON panels
Supports both legacy 63-bit 433 MHz and new LoNa 433 MHz encrypted transmitters
Quick configuration via Aritech "Learn Mode" technology
Includes two wired zone inputs for hybrid setups
One programmable SPDT Form C relay output
Removable terminals for easy installation
Firmware upgradeable for future enhancements
The ATS1236 Wireless Receiver expands AXON series panels with wireless capabilities, supporting up to 32 wireless zones and 16 keyfobs. It is compatible with legacy 433 MHz 63-bit transmitters and the new LoNa 433 MHz encrypted transmitters, ensuring secure, interference-free communication. Additionally, the ATS1236 includes two wired zone inputs and one programmable SPDT Form C relay output, providing flexible integration options for security installations. Key Features: Adds 32 wireless zones to AXON panels Supports both legacy 63-bit 433 MHz and new LoNa 433 MHz encrypted transmitters Quick configuration via Aritech "Learn Mode" technology Includes two wired zone inputs for hybrid setups One programmable SPDT Form C relay output Removable terminals for easy installation Firmware upgradeable for future enhancements
