AXON Relay board, 8-way (ATS1811)
Description

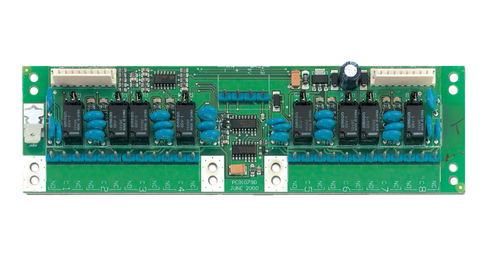

The ATS1811 is an 8-way relay expansion module designed to increase the relay output capacity of an AXON panel, expander, or DGP. It features eight single-pole double-throw (SPDT) relays, each with dedicated common (C), normally open (NO), and normally closed (NC) contacts, providing flexible control options for access control, alarm signaling, and automation functions.
Each relay is rated at 1A @ 0–30VDC or 300mA @ 48VDC, making it suitable for a range of low-voltage switching applications. The ATS1811 can be daisy-chained to support up to 16 relays when connected to an expander, and up to 64 relays in a 4-to-8 door/lift expander, allowing for large-scale system expansion.
For enhanced flexibility, the ATS1811 can be powered directly from the panel or an external power supply if additional power is required. Each relay also includes an LED status indicator to provide clear visual feedback when activated.
Key Features:
- Expands AXON panels, DGPs, or expanders with eight SPDT relay outputs
- Supports daisy-chaining for up to 16 relays with an expander or 64 relays in a door/lift expander
- Option to power via separate power supply for enhanced system performance
- Plug-in connection via included flat cable for easy installation
- LED status indicators for each relay activation
Each relay is rated at 1A @ 0–30VDC or 300mA @ 48VDC, making it suitable for a range of low-voltage switching applications. The ATS1811 can be daisy-chained to support up to 16 relays when connected to an expander, and up to 64 relays in a 4-to-8 door/lift expander, allowing for large-scale system expansion.
For enhanced flexibility, the ATS1811 can be powered directly from the panel or an external power supply if additional power is required. Each relay also includes an LED status indicator to provide clear visual feedback when activated.
Key Features:
- Expands AXON panels, DGPs, or expanders with eight SPDT relay outputs
- Supports daisy-chaining for up to 16 relays with an expander or 64 relays in a door/lift expander
- Option to power via separate power supply for enhanced system performance
- Plug-in connection via included flat cable for easy installation
- LED status indicators for each relay activation
The ATS1811 is an 8-way relay expansion module designed to increase the relay output capacity of an AXON panel, expander, or DGP. It features eight single-pole double-throw (SPDT) relays, each with dedicated common (C), normally open (NO), and normally closed (NC) contacts, providing flexible control options for access control, alarm signaling, and automation functions.
Each relay is rated at 1A @ 0–30VDC or 300mA @ 48VDC, making it suitable for a range of low-voltage switching applications. The ATS1811 can be daisy-chained to support up to 16 relays when connected to an expander, and up to 64 relays in a 4-to-8 door/lift expander, allowing for large-scale system expansion.
For enhanced flexibility, the ATS1811 can be powered directly from the panel or an external power supply if additional power is required. Each relay also includes an LED status indicator to provide clear visual feedback when activated.
Key Features:
- Expands AXON panels, DGPs, or expanders with eight SPDT relay outputs
- Supports daisy-chaining for up to 16 relays with an expander or 64 relays in a door/lift expander
- Option to power via separate power supply for enhanced system performance
- Plug-in connection via included flat cable for easy installation
- LED status indicators for each relay activation
