AXON Relay board, 4-way (ATS1810)
Description

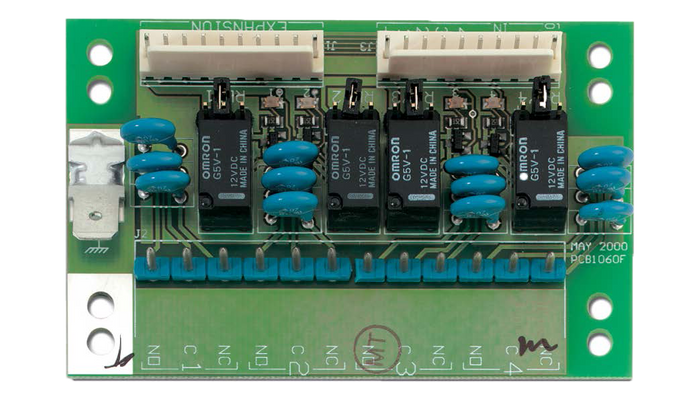

The ATS1810 is a four-way relay card designed to expand the relay output capacity of an AXON panel, DGP, or expander. It provides four single-pole double-throw (SPDT) relays, each with dedicated common (C), normally open (NO), and normally closed (NC) contacts, ensuring versatile control options for security and automation applications.
Each relay is rated at 1A @ 0–30VDC, reducing to 300mA @ 48VDC, making it suitable for a range of low-voltage switching applications. When connected to a DGP, two ATS1810 relay modules can be daisy-chained, providing up to eight relays on the ATS120xE series. When used with an AXON control panel or a 4-to-8 door/lift expander, only one relay module can be installed.
For quick diagnostics, each relay is equipped with an LED indicator to show activation status.
Key Features:
- Expands AXON panels, DGPs, or expanders with four SPDT relay outputs
- Maximum number of relay modules depends on the panel/expander used
- Plug-in connection via included flat cable for easy installation
- LED status indicators for each relay
Each relay is rated at 1A @ 0–30VDC, reducing to 300mA @ 48VDC, making it suitable for a range of low-voltage switching applications. When connected to a DGP, two ATS1810 relay modules can be daisy-chained, providing up to eight relays on the ATS120xE series. When used with an AXON control panel or a 4-to-8 door/lift expander, only one relay module can be installed.
For quick diagnostics, each relay is equipped with an LED indicator to show activation status.
Key Features:
- Expands AXON panels, DGPs, or expanders with four SPDT relay outputs
- Maximum number of relay modules depends on the panel/expander used
- Plug-in connection via included flat cable for easy installation
- LED status indicators for each relay
The ATS1810 is a four-way relay card designed to expand the relay output capacity of an AXON panel, DGP, or expander. It provides four single-pole double-throw (SPDT) relays, each with dedicated common (C), normally open (NO), and normally closed (NC) contacts, ensuring versatile control options for security and automation applications.
Each relay is rated at 1A @ 0–30VDC, reducing to 300mA @ 48VDC, making it suitable for a range of low-voltage switching applications. When connected to a DGP, two ATS1810 relay modules can be daisy-chained, providing up to eight relays on the ATS120xE series. When used with an AXON control panel or a 4-to-8 door/lift expander, only one relay module can be installed.
For quick diagnostics, each relay is equipped with an LED indicator to show activation status.
Key Features:
- Expands AXON panels, DGPs, or expanders with four SPDT relay outputs
- Maximum number of relay modules depends on the panel/expander used
- Plug-in connection via included flat cable for easy installation
- LED status indicators for each relay
