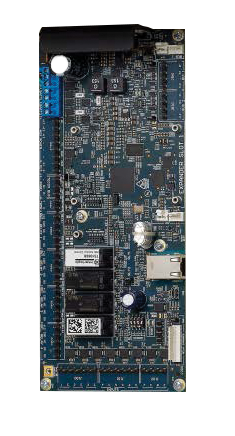

AXON 4 door controller, ATS protocol, OSDP, Aperio, Salto, up to 6 readers per door, 4 relays (expandable), 8 inputs (expandable), 65,000 users, board only (CDC4-MBC-AU)
Description
The CDC4 is a 4-door and lift controller designed to extend the Axon series system, offering a comprehensive and versatile access control solution. With real-time alarm and access control capabilities, the CDC4 supports four doors or lifts.
Designed for maximum reliability, the CDC4 continues to operate offline without any performance degradation if communication with the Axon series panel is lost. By combining intrusion detection and access control, the CDC4 minimizes wiring and device requirements by allowing shared use of readers and inputs for both security and access purposes. The controller also features flexible lift and door functionality, allowing each device to be configured accordingly.
Key Features:
- Real-time alarm & access control for up to 4 doors or lifts per controller
- Complete offline database for uninterrupted operation
- Configurable as a door or lift controller – use both functions in a single device
- Advanced access control features:
- Interlocking
- User count restrictions
- High-security user settings
- Anti-passback with defined regions
- Supports up to 65,532 users with card and/or PIN access
- Manages up to 24 readers per CDC4 (maximum 6 per door)
- Dual local databuses with configurable protocols
- Compatible with secure readers, OSDP readers, and wireless locks
- Integrated inputs, door relays, IP connectivity, and expansion options
- Global anti-passback across all door controllers connected to Axon series
