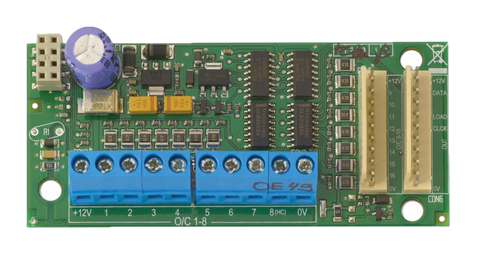

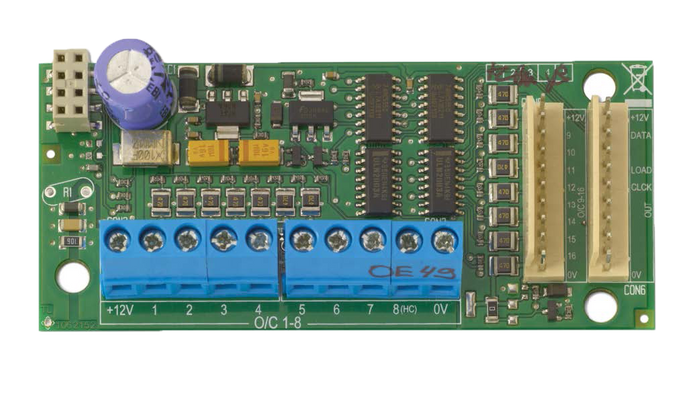

AXON 8 output plug-on expander (16 with ATS1811 added) (ATS626)
Description
The ATS626 is an 8-way output expansion module designed for Axon series panels, offering eight open collector outputs for enhanced system control. To maximize space efficiency, the ATS626 is a plug-in module that connects directly to the main control panel PCB, reducing the need for additional housing.
This module features eight open collector outputs, accessible via screw terminals, including one high-current output (1A) for applications requiring increased power handling. Additionally, the ATS626 allows for further expansion by supporting two ATS1810 four-way relay cards, providing up to eight additional relay outputs. The output functions are fully configurable through the control panel settings, ensuring seamless integration into security and automation systems.
Key Features:
- Adds 8 open collector outputs to Axon series panels
- Expandable with 2 x ATS1810 relay cards for 8 additional relay outputs
- Includes 1 high-current output (1A) for higher power applications
- Open collector output max: 50mA
- Plug-in design for direct integration with the control panel PCB
- Space-saving solution – no separate housing required
