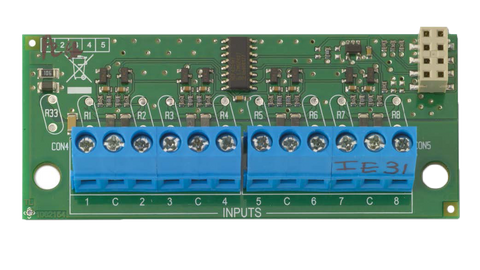

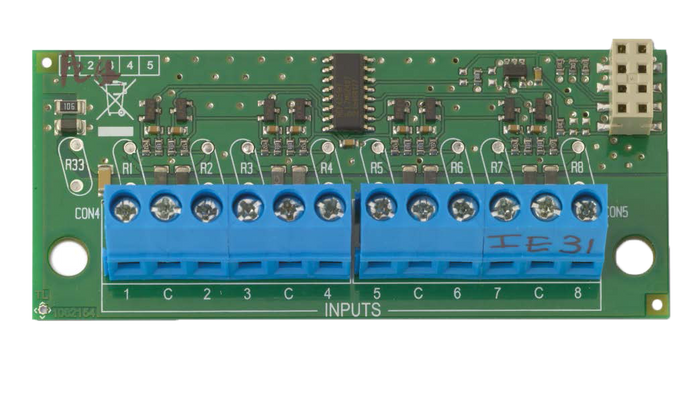

AXON 8 input plug-on expander (ATS608)
Description
The ATS608 is an 8-way input expansion module designed for Axon series panels, providing additional input capacity for enhanced system functionality. To minimize space requirements, the ATS608 is a plug-in module that connects directly to the main control panel PCB, eliminating the need for separate housing.
This expansion module offers 8 additional inputs, accessible via screw terminals, and allows for seamless zone assignment through the control panel configuration. The zone type is easily defined via the zone menu in the main control panel, ensuring flexible integration for various security applications.
Key Features:
- 8 additional inputs for Axon series panels
- Plug-in design for direct integration with the control panel PCB
- Space-saving solution – no separate housing required
- Screw terminal connections for easy wiring
- Configurable zone assignment via the control panel
- Supports shock sensors for enhanced perimeter protection
