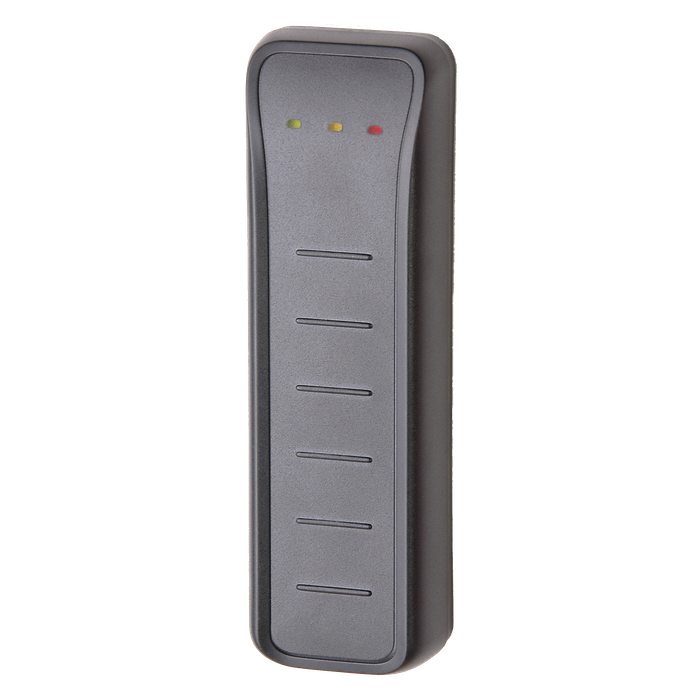

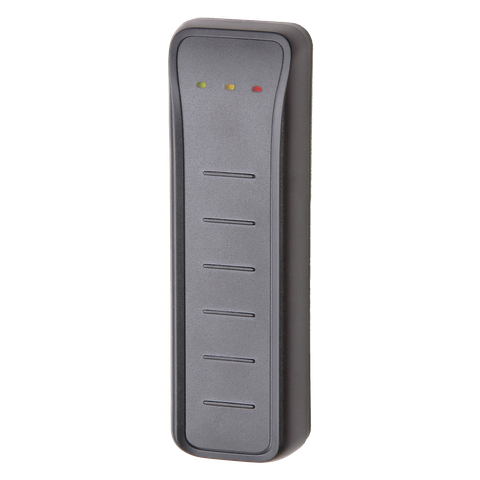

AXON Secure MIFARE DESFire EV1/EV2 card reader with output and RTE input in slim design (ATS1180)
Description
The ATS MIFARE DESFire EV1/EV2 readers provide secure and encrypted communication with the Axon control panel or 4-door controller via the ATS databus. With AES-128 bit encryption, these readers ensure a highly secure connection between card credentials and the controller, offering peace of mind for any access control installation.
The readers can be programmed directly via a keypad or using the ATS1482 address cards, making setup and configuration simple. Aritech also offers a full range of secure credentials to suit diverse security applications.
Designed for both indoor and outdoor use, the ATS readers feature a durable, slim-profile housing and include essential access control functions such as a Request to Exit (RTE) input and an open collector output, which can be used to control a door relay or door strike.
For added flexibility, the readers can be configured to operate in secure mode (using proprietary or custom security keys) or unsecure mode, reading standard MIFARE CSN numbers.
Key Features:
- Secure ATS MIFARE DESFire EV1/EV2 reader
- AES-128 encrypted communication between the reader and Axon control panel
- Supports secure MIFARE (secure mode) or MIFARE 4/7-byte CSN/UID (unsecure mode)
- Compatible with ATS145x series secure cards or custom cards
- Slim, robust molded plastic housing for indoor/outdoor installation
-ATS bus interface for direct integration with Axon panels
- Request to Exit (RTE) input for enhanced access control
- Open Collector Output for controlling door relays or strikes
The readers can be programmed directly via a keypad or using the ATS1482 address cards, making setup and configuration simple. Aritech also offers a full range of secure credentials to suit diverse security applications.
Designed for both indoor and outdoor use, the ATS readers feature a durable, slim-profile housing and include essential access control functions such as a Request to Exit (RTE) input and an open collector output, which can be used to control a door relay or door strike.
For added flexibility, the readers can be configured to operate in secure mode (using proprietary or custom security keys) or unsecure mode, reading standard MIFARE CSN numbers.
Key Features:
- Secure ATS MIFARE DESFire EV1/EV2 reader
- AES-128 encrypted communication between the reader and Axon control panel
- Supports secure MIFARE (secure mode) or MIFARE 4/7-byte CSN/UID (unsecure mode)
- Compatible with ATS145x series secure cards or custom cards
- Slim, robust molded plastic housing for indoor/outdoor installation
-ATS bus interface for direct integration with Axon panels
- Request to Exit (RTE) input for enhanced access control
- Open Collector Output for controlling door relays or strikes
The ATS MIFARE DESFire EV1/EV2 readers provide secure and encrypted communication with the Axon control panel or 4-door controller via the ATS databus. With AES-128 bit encryption, these readers ensure a highly secure connection between card credentials and the controller, offering peace of mind for any access control installation.
The readers can be programmed directly via a keypad or using the ATS1482 address cards, making setup and configuration simple. Aritech also offers a full range of secure credentials to suit diverse security applications.
Designed for both indoor and outdoor use, the ATS readers feature a durable, slim-profile housing and include essential access control functions such as a Request to Exit (RTE) input and an open collector output, which can be used to control a door relay or door strike.
For added flexibility, the readers can be configured to operate in secure mode (using proprietary or custom security keys) or unsecure mode, reading standard MIFARE CSN numbers.
Key Features:
- Secure ATS MIFARE DESFire EV1/EV2 reader
- AES-128 encrypted communication between the reader and Axon control panel
- Supports secure MIFARE (secure mode) or MIFARE 4/7-byte CSN/UID (unsecure mode)
- Compatible with ATS145x series secure cards or custom cards
- Slim, robust molded plastic housing for indoor/outdoor installation
-ATS bus interface for direct integration with Axon panels
- Request to Exit (RTE) input for enhanced access control
- Open Collector Output for controlling door relays or strikes
