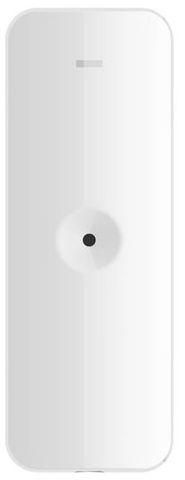

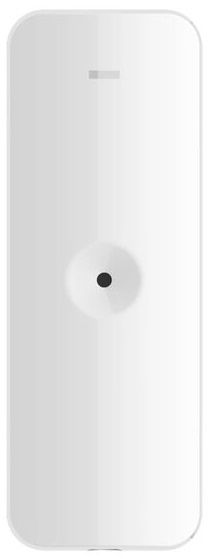

HIKVISION AX PRO Series Wireless Glass Break Detector
Description
* 433MHz two-way Tri-X wireless technology;
* Frequency hooping against jamming for reliable transmission;
* RF Range: 1,000m(open space);
* BG Detection Range: Up to 8m/120*
* 2-ch External Zones for wired sensors;
* Multiple Enrolling Methods: Power up, Remote ID, QR Code;
* SSI(Signal Strength Indicators);
* Environment Temperature Indication;
* Fully remote configurable through APP;
* Wall/ceiling mount
* Battery Type: 2 * CR123A battery (included by default, easy replaceable)
* Battery Life: 5 years (triggered 10 times every day)
* Frequency hooping against jamming for reliable transmission;
* RF Range: 1,000m(open space);
* BG Detection Range: Up to 8m/120*
* 2-ch External Zones for wired sensors;
* Multiple Enrolling Methods: Power up, Remote ID, QR Code;
* SSI(Signal Strength Indicators);
* Environment Temperature Indication;
* Fully remote configurable through APP;
* Wall/ceiling mount
* Battery Type: 2 * CR123A battery (included by default, easy replaceable)
* Battery Life: 5 years (triggered 10 times every day)
<h2 class="prod_name"><span class="prod_name-content" style="font-size: 16px;">Wireless Glass Break Detector</span></h2><ul class="product_description_item-list"><li class=" product_description_item"><span style="font-size: 16px;">High quality Omni-directional microphone sensor</span></li><li class=" product_description_item"><span style="font-size: 16px;">Fully remote configurable through App</span></li><li class=" product_description_item"><span style="font-size: 16px;">Multiple enrollment method and easy installation design</span></li><li class=" product_description_item"><span style="font-size: 16px;">Easy replaceable battery with PCB protected</span></li><li class=" product_description_item"><span style="font-size: 16px;">Frequency hopping against jamming for reliable transmission</span></li><li class=" product_description_item"><span style="font-size: 16px;">Model - DS-PDBG8-EG2-WB</span></li></ul><p><span style="font-size: 16px;"><strong>Specifications<br /></strong></span><strong><span class="tech-specs-items-description__title--heading">Detection Performance</span></strong></p><ul class="tech-specs-items-description" data-target="Detection Performance"><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Detection Method - </span><span class="tech-specs-items-description__title-details">Acoustic Sensor</span></li><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Detection Range - </span><span class="tech-specs-items-description__title-details">8m</span></li><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Detection Angle - </span><span class="tech-specs-items-description__title-details">120°</span></li><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Sensitivity - </span><span class="tech-specs-items-description__title-details">2m;4m;6m;8m</span></li><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Glass Type - </span><span class="tech-specs-items-description__title-details">Float;Plate;Tampered;Wired;Laminated Leaded;Double Glazing</span></li><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Glass Thickness - </span><span class="tech-specs-items-description__title-details">2.4mm to 6.4mm</span></li><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Glass Size - </span><span class="tech-specs-items-description__title-details">0.3m x 0.3m to 3m x 3m</span></li></ul><p><strong><span class="tech-specs-items-description__title--heading">Feature</span></strong></p><ul class="tech-specs-items-description" data-target="Feature"><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Digital Processing - </span><span class="tech-specs-items-description__title-details">Support</span></li><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Tamper Protection - </span><span class="tech-specs-items-description__title-details">Front;Rear</span></li><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Environment Temperature Indicator - </span><span class="tech-specs-items-description__title-details">Support</span></li><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Signal Strength Indicator - </span><span class="tech-specs-items-description__title-details">Support</span></li></ul><p><strong><span class="tech-specs-items-description__title--heading">Interface</span></strong></p><ul class="tech-specs-items-description" data-target="Interface"><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Alarm Input - </span><span class="tech-specs-items-description__title-details">Normally Closed;Normally Open;Impulse Count</span></li><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Power Switch - </span><span class="tech-specs-items-description__title-details">Power Up Enrolling</span></li><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">LED Indicator - </span><span class="tech-specs-items-description__title-details">Blue(Alarm)</span></li></ul><p><strong><span class="tech-specs-items-description__title--heading">Transmission</span></strong></p><ul class="tech-specs-items-description" data-target="Transmission"><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Transmission Technology - </span><span class="tech-specs-items-description__title-details">Tri-X Wireless</span></li><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Transmission Method - </span><span class="tech-specs-items-description__title-details">Two-Way RF Wireless</span></li><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Transmission Frequency - </span><span class="tech-specs-items-description__title-details">433MHz</span></li><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Transmission Security - </span><span class="tech-specs-items-description__title-details">AES-128 Encryption</span></li><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Transmission Range(Free Space) - </span><span class="tech-specs-items-description__title-details">1Km</span></li><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Frequency Hopping - </span><span class="tech-specs-items-description__title-details">Support</span></li><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Enrolling Method - </span><span class="tech-specs-items-description__title-details">Power up;Remote ID;QR Code</span></li></ul><p><strong><span class="tech-specs-items-description__title--heading">Electrical Characteristics</span></strong></p><ul class="tech-specs-items-description" data-target="Electrical Characteristics"><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Power Supply - </span><span class="tech-specs-items-description__title-details">Battery Powered</span></li><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Battery Type - </span><span class="tech-specs-items-description__title-details">CR123A × 2</span></li><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Typical Voltage - </span><span class="tech-specs-items-description__title-details">3V</span></li><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Standard Battery Life - </span><span class="tech-specs-items-description__title-details">5 years in work status (being triggered 20 times per day)</span></li></ul><p><strong><span class="tech-specs-items-description__title--heading">General</span></strong></p><ul class="tech-specs-items-description" data-target="General"><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Operation Temperature </span><span class="tech-specs-items-description__title-details">-10 °C to 55 °C (14 °F to 131 °F)</span></li><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Storage Temperature </span><span class="tech-specs-items-description__title-details">-20 °C to 60 °C (-4 °F to 140 °F)</span></li><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Operation Humidity - </span><span class="tech-specs-items-description__title-details">10% to 90%</span></li><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Dimension(WxHxD) - </span><span class="tech-specs-items-description__title-details">38.8mm × 107.0mm × 24.5mm</span></li><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title-details">83g</span></li><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Mounting Method - </span><span class="tech-specs-items-description__title-details">Wall;Ceiling</span></li><li class="tech-specs-items-description-list"><span class="tech-specs-items-description__title">Application Scenario - </span><span class="tech-specs-items-description__title-details">Indoor</span></li></ul>
