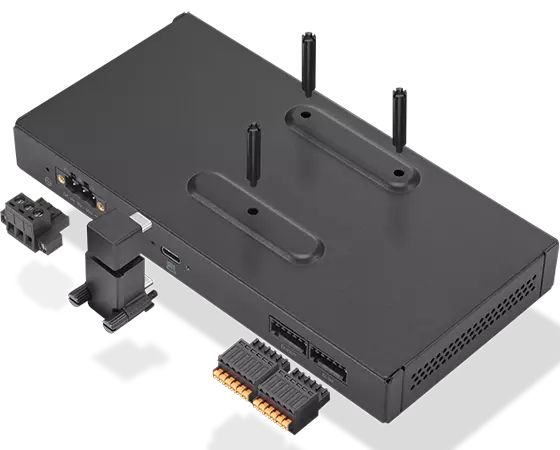

ThinkEdge SE30 IO Box
Description
- Product Dimensions (L*W*H): 177*88*25.6mm
-Operating Temperature: - 20 ~ 60 C (- 4 ~ 140 F)
-Expansion Port Front: 2x RS-232/422/485 (SW changeable), 2x PoE(fully compliant with IEEE 802.3, IEEE 802.3u, and IEEE 802.3ab, also compatible with IEEE 802.3af or IEEE 802.3at devices, with input power must be higher than 135W). Equipped with RTL8153B. Support full duplex flow control (IEEE 802.3x)
-Expansion Port Rear: 1x DC-in power LED indicator, 1x DC-in 9~36V power input, 1x USB-C*, DI connector x1, (Input type: NPN/PNP, Input resistance: 2.5 kΩ, Isolation voltage: 1.5 kV (DC), Overvoltage protection: 70 V (DC)), DO connector x1*(Output type: NPN, voltage 5-30V from external power supply, Current: 500 mA/Channel at 25 C, 300 mA/Channel at 60 C, Isolation voltage: 1.5 kV (DC))
-Operating Temperature: - 20 ~ 60 C (- 4 ~ 140 F)
-Expansion Port Front: 2x RS-232/422/485 (SW changeable), 2x PoE(fully compliant with IEEE 802.3, IEEE 802.3u, and IEEE 802.3ab, also compatible with IEEE 802.3af or IEEE 802.3at devices, with input power must be higher than 135W). Equipped with RTL8153B. Support full duplex flow control (IEEE 802.3x)
-Expansion Port Rear: 1x DC-in power LED indicator, 1x DC-in 9~36V power input, 1x USB-C*, DI connector x1, (Input type: NPN/PNP, Input resistance: 2.5 kΩ, Isolation voltage: 1.5 kV (DC), Overvoltage protection: 70 V (DC)), DO connector x1*(Output type: NPN, voltage 5-30V from external power supply, Current: 500 mA/Channel at 25 C, 300 mA/Channel at 60 C, Isolation voltage: 1.5 kV (DC))
- Product Dimensions (L*W*H): 177*88*25.6mm
-Operating Temperature: - 20 ~ 60 C (- 4 ~ 140 F)
-Expansion Port Front: 2x RS-232/422/485 (SW changeable), 2x PoE(fully compliant with IEEE 802.3, IEEE 802.3u, and IEEE 802.3ab, also compatible with IEEE 802.3af or IEEE 802.3at devices, with input power must be higher than 135W). Equipped with RTL8153B. Support full duplex flow control (IEEE 802.3x)
-Expansion Port Rear: 1x DC-in power LED indicator, 1x DC-in 9~36V power input, 1x USB-C*, DI connector x1, (Input type: NPN/PNP, Input resistance: 2.5 kΩ, Isolation voltage: 1.5 kV (DC), Overvoltage protection: 70 V (DC)), DO connector x1*(Output type: NPN, voltage 5-30V from external power supply, Current: 500 mA/Channel at 25 C, 300 mA/Channel at 60 C, Isolation voltage: 1.5 kV (DC))
