2N 9159010 Security Relay (01386-001)
Description
2N 9159010

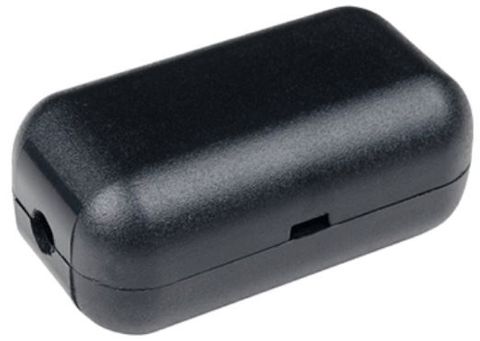

2N 9159010 SECURITY RELAY
The 2N 9159010 security relay is a simple accessory which we recommend using with each intercom and reader It significantly improves the security of the installation at minimum additional cost. It prevents doors from being opened with a 12V battery a technique which allows burglars to open low-power locks if they reach the cables connecting the intercom/reader to the lock.
TECHNICAL SPECIFICATION
*Passive switch: NO and NC contacts, up to 30 V / 1 A AC/DC Switched output:
*Where the security relay is fed from the intercom, 9 to 13 V DC is available on the output depending on the power supply (PoE: 9 V; adapter: source voltage of minus 1 V) / 400 mA DC.
*Where the security relay is fed from an external power supply, 12 V / 700 mA DC is available on the output.
*Dimensions: (56 x 31 x 24) mm
*Weight: 20g
*2n Code: 9159010

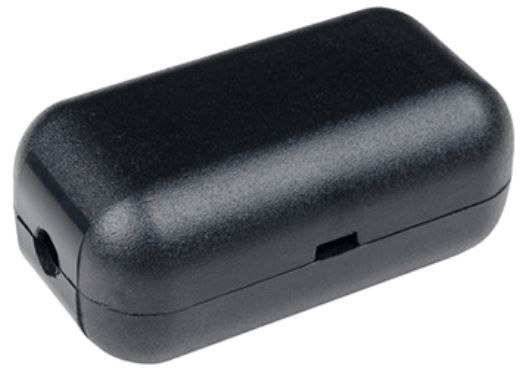

2N 9159010 SECURITY RELAY
The 2N 9159010 security relay is a simple accessory which we recommend using with each intercom and reader It significantly improves the security of the installation at minimum additional cost. It prevents doors from being opened with a 12V battery a technique which allows burglars to open low-power locks if they reach the cables connecting the intercom/reader to the lock.
TECHNICAL SPECIFICATION
*Passive switch: NO and NC contacts, up to 30 V / 1 A AC/DC Switched output:
*Where the security relay is fed from the intercom, 9 to 13 V DC is available on the output depending on the power supply (PoE: 9 V; adapter: source voltage of minus 1 V) / 400 mA DC.
*Where the security relay is fed from an external power supply, 12 V / 700 mA DC is available on the output.
*Dimensions: (56 x 31 x 24) mm
*Weight: 20g
*2n Code: 9159010
<p><span style="font-size: 18px;"><strong>2N SECURITY RELAY</strong></span><br /><br /><span style="font-size: 18px;">The 2N security relay is a simple accessory which we recommend using with each intercom and reader. It significantly improves the security of the installation at minimum additional cost. It prevents doors from being opened with a 12V battery – a technique which allows burglars to open low-power locks if they reach the cables connecting the intercom/reader to the lock.<br /><br />Install the security relay between the intercom/reader and lock and pair it with the 2N device. If an attempt is made to open the door, the relay will wait for a verification code from the 2N device. Once the signal arrives, it will actuate the attached lock and open the door. If the signal does not arrive, for example if a burglar attempts to open the door with a 12V battery, the door will remain closed.</span></p><p><span style="font-size: 18px;"><strong>TECHNICAL SPECIFICATION</strong></span></p><ul><li><span style="font-size: 18px;">Passive switch: NO and NC contacts, up to 30 V / 1 A AC/DC</span><br /><span style="font-size: 18px;">Switched output:</span></li><li><span style="font-size: 18px;">Where the security relay is fed from the intercom, 9 to 13 V DC is available on the output </span><span style="font-size: 18px;">depending on the power supply (PoE: 9 V; adapter: source voltage of minus 1 V) / 400 mA DC.</span></li><li><span style="font-size: 18px;">Where the security relay is fed from an external power supply, 12 V / 700 mA DC is available on the output.</span></li><li><span style="font-size: 18px;">Dimensions: (56 x 31 x 24) mm</span></li><li><span style="font-size: 18px;">Weight: 20g</span></li></ul>
