VIVOTEK Vortex Premium 5MP Outdoor Bullet, 2.7 - 13.5mm Lens, IR 30m, Two way Audio, Preinstalled 256GB SD Card, IP66/IK10, WDR Pro, Smart VCA and Attribute Search included (IB837-HT)
Description

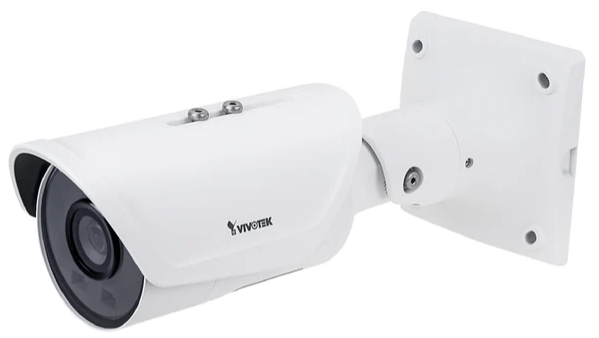

Vivotek IB837-HT Vortex Premium 5MP Outdoor Bullet
Technical Specifications
*CPU - Multimedia SoC
*Image Sensor - 1/2.8" Progressive CMOS
*Max. Resolution - 2560x1920 (5MP)
*Lens Type - Zoom
*Focal Length - f = 2.7 ~ 13.5 mm
*Aperture - F1.4 ~ F2.8
*Field of View - 97°~27° (Horizontal)/70°~20°(Vertical)/131°-34° (Diagonal)
*IR Illuminators - 50 meters with Smart IR II
*Required SD Card Storage - 256 GB
*Video - H.264
*Audio - Two-way
*Connectivity - RJ-45 cable connector for 10/100Mbps Network, PoE connection
*Power Input - AC 24V, DC 12V, IEEE 802.3at PoE
*Power Consumption - PoE: Max. 25W, DC 12V: Max. 29.5W, AC 24V: Max. 28W (with heater)
*Dimensions - 118 x 294.6 mm
*Weight - 1421 g
*Certifications - CE, FCC, VCCI, UL, CB, BSMI, IP66, IK10
*Operating Temperature - -30°C ~ 50°C
*Humidity - 90%
*Warranty - 60 months
