VIVOTEK Vortex Premium 5MP Outdoor Dome, 2.7 - 13.5mm Lens, IR 30m, Two way Audio, Preinstalled 256GB SD Card, IP66/IK10, WDR Pro, Smart VCA and Attribute search included (FD837-HTV)
Description

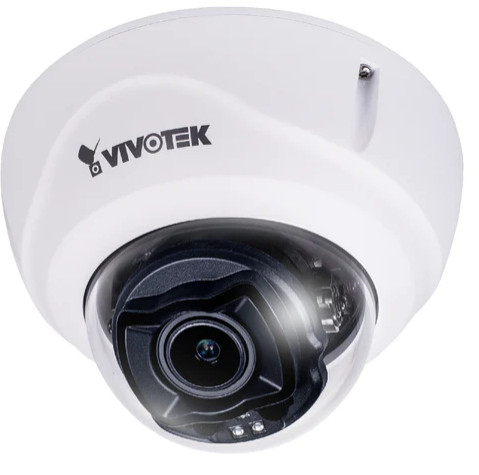

Vivotek FD837-HTV Vortex Premium 5MP Outdoor Dome
Technical Specifications
*CPU - Multimedia SoC
*Image Sensor - 1/2.8" Progressive CMOS
*Max. Resolution - 2560x1920 (5MP)
*Lens Type - Zoom
*Focal Length - f = 2.7 ~ 12.5 mm
*Aperture - F1.4 ~ F2.8
*Field of View - 97° ~27° (Horizontal)/70° ~20° (Vertical)/131° ~34° (Diagonal)
*IR Illuminators - 50 meters with Smart IR
*Required SD Card Storage - 256 GB
*Video - H.264
*Audio - Two-way
*Connectivity - RJ-45 cable connector for 10/100 Mbps PoE network connection
*Power Input - AC 24V/DC 12V, IEEE 802.3at PoE
*Power Consumption - PoE: Max. 22.5W, DC 12V: Max. 23W, AC 24V: Max. 21W
*Dimensions - 155 x 104 mm
*Weight - 905 g
*Certifications - CE, FCC, VCCI, UL, CB, BIS, BSMI, IP66, IK10
*Operating Temperature - -40° C ~ 50° C
*Humidity - 98%
*Warranty - 60 months
